- Place of Origin: Lai Zhou
- Brand Name: wontide
- Model Number: ZL-15
1 digging a large force, high discharge automatic level, working device action time to shorten, improve the efficiency of the whole machine
2 Dual caliper disc brake, the braking efficiency is high, safe and reliable
3 split type hydraulic torque converter, not easy to high temperature, convenient maintenance
4 external automatic charging system, inflation at any time
5 frame structure using the finite element analysis technology, the work of the strength of the parts using the enhanced stiffness and strength of the structure
6 transmission parts are arranged separately, the fuel tank movable link function is convenient for maintenance.
7 operation for single lever operation, comfortable and convenient operation
- Place of Origin: Lai Zhou
- Brand Name: wontide
- Model Number: ZL-15

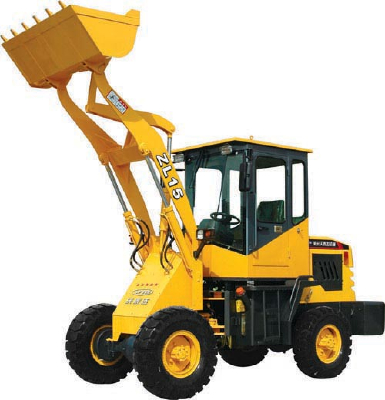

ZL-15
额定装载质量（kg） Rated Load Volume Kg | 1500 |
额定斗容量（m3） Rated Bucket capacity | 0.8 |
整机重量（kg） Weight of whole machine | 3200 |
发动机型号 Type of engine | 485 |
额定功率（kw） Rated power kw | 36 |
额定转速（r/min） Rated revolution r/min | 2200 |
卸载高度（mm） Unloading distance mm | 3100 |
卸载距离（mm） Unloading distance mm | 1000 |
动力传动方式 Power transmission | 机械式 |
外型尺寸（mm） Size of shape （LxWxH）mm | 3800x1700x2500 |
